| Reference Technical Data for Yinxuan Vibrated Graphite Material |
| Grade |
Item |
Unit |
Reference Data |
Main Applications |
| GSK—Ⅰ |
Max Grain Size |
mm |
≤0.8 |
|
Vibrated graphite is mainly in round and square shape.
Main applications are as following:
1. Used to machine graphite crucible, boat/dish, mold, rotor and shaft, heating unit, launder and graphite densener and so on.
2. Used as structural material in high temperature furnace
3. Used as blank materials of machined graphite parts in environment of strong acid, strong alkali and strong erosion. Such as industries of rare earth, chemicals and so on.
4. Used to machine graphite electrodes.
|
|
| Bulk Density |
g/cm3 |
≥1.69 |
| Specific Resistivity |
μΩ·m |
≤10.0 |
| Flexural Strength |
MPa |
≥14.0 |
| Compressive Strength |
MPa |
≥30.0 |
| Elastic Modulus |
GPa |
≤11.0 |
| C.T.E（100-600℃） |
×10-6/℃ |
≤3.0 |
| Ash |
% |
≤0.3 |
| GSK—Ⅱ |
Max Grain Size |
mm |
≤0.8 |
| Bulk Density |
g/cm3 |
≥1.72 |
| Specific Resistivity |
μΩ·m |
≤7.5 |
| Flexural Strength |
MPa |
≥15.0 |
| Compressive Strength |
MPa |
≥34.0 |
| Elastic Modulus |
GPa |
≤9.0 |
| C.T.E（100-600℃） |
×10-6/℃ |
≤3.0 |
| Ash |
% |
≤0.3 |
| TSK—Ⅰ |
Max Grain Size |
mm |
≤2.0 |
| Bulk Density |
g/cm3 |
≥1.68 |
| Specific Resistivity |
μΩ·m |
≤10.5 |
| Flexural Strength |
MPa |
≥11.0 |
| Compressive Strength |
MPa |
≥23.0 |
| Elastic Modulus |
GPa |
≤9.0 |
| C.T.E（100-600℃） |
×10-6/℃ |
≤2.5 |
| Ash |
% |
≤0.3 |
| TSK—Ⅱ |
Max Grain Size |
mm |
≤2.0 |
| Bulk Density |
g/cm3 |
≥1.72 |
| Specific Resistivity |
μΩ·m |
≤8.0 |
| Flexural Strength |
MPa |
≥15.0 |
| Compressive Strength |
MPa |
≥32.0 |
| Elastic Modulus GPa |
GPa |
≤11.0 |
| C.T.E（100-600℃） |
×10-6/℃ |
≤2.5 |
| Ash |
% |
≤0.3 |
| PSK—Ⅰ |
Max Grain Size |
mm |
≤4.0 |
| Bulk Density |
g/cm3 |
≥1.58 |
| Specific Resistivity |
μΩ·m |
≤11.0 |
| Flexural Strength |
MPa |
≥10.0 |
| Compressive Strength |
MPa |
≥20.0 |
| Elastic Modulus |
GPa |
≤8.0 |
| C.T.E（100-600℃） |
×10-6/℃ |
≤2.0 |
| Ash |
% |
≤0.3 |
| PSK—Ⅱ |
Max Grain Size |
mm |
≤4.0 |
| Bulk Density |
g/cm3 |
≥1.72 |
| Specific Resistivity |
μΩ·m |
≤8.5 |
| Flexural Strength |
MPa |
≥13.0 |
| Compressive Strength |
MPa |
≥28.0 |
| Elastic Modulus |
GPa |
≤6.0 |
| C.T.E（100-600℃） |
×10-6/℃ |
≤2.0 |
| Ash |
% |
≤0.3 |

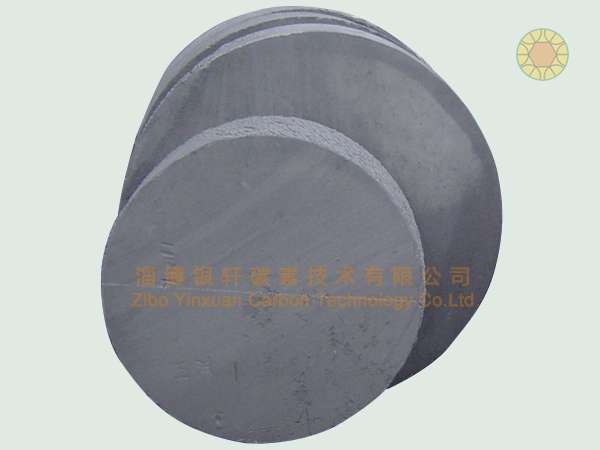

Vibrated Graphite

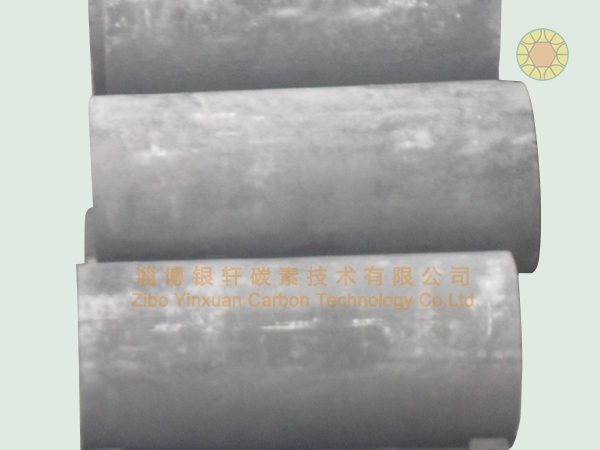

Vibrated Graphite

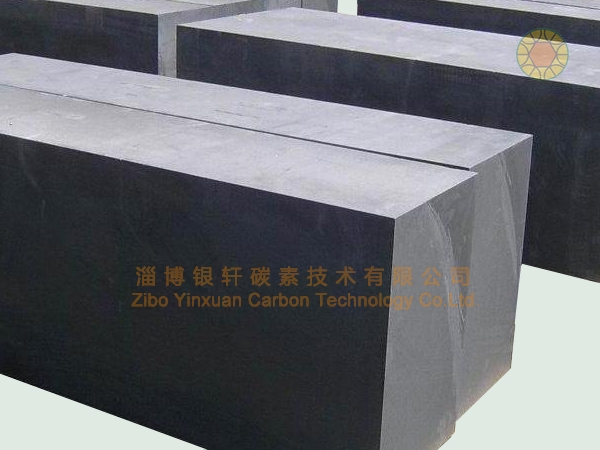

Vibrated Graphite
|
